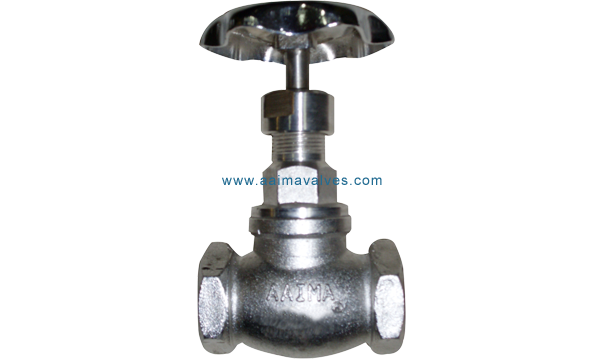

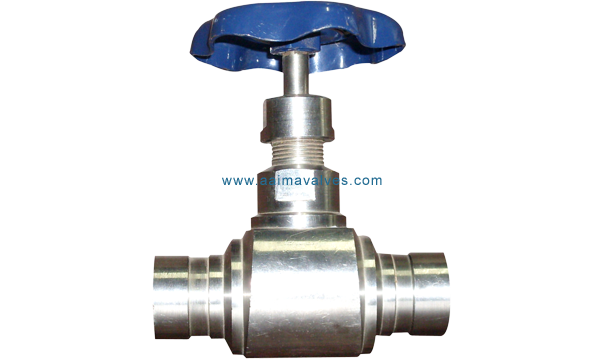

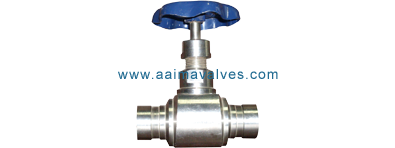

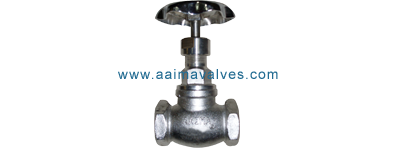

Globe Valve

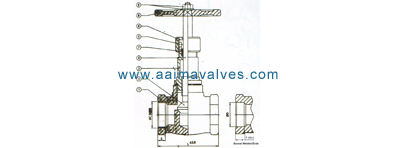

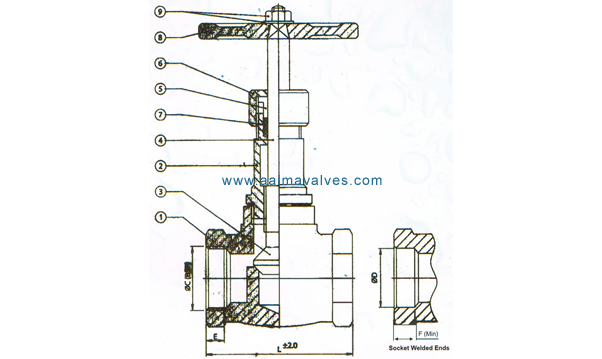

| PARTS / MATERIALS LIST | ||
| Part No. | Nomenclature | MATERIAL |
| 1 | BODY. | ASTM A351 Gr. CF8/CF8M |
| 2 | BONNET. | ASTM A351 Gr. CF8/CF8M |
| 3 | VALVE (INTEGRAL WITH SPINDLE) | ASTM A351 Gr. CF8/CF8M |
| 4 | SPINDLE | AISI 304 / 316 |
| 5 | GLAND | AISI 304 / 316 |
| 6 | GLAND NUT | AISI 304 / 316 |
| 7 | STEM PACKINGS | PTFE / GRAFOIL |
| 8 | HAND WHEEL | CAST IRON / ALUMINIUM |
| 9 | HAND WHEEL NUT & WASHER | SS 304 / M.S. PLATED |
| TECHNICAL DATA : | |
| 1 | Manufacturing Std : Generally conforming to BS 5352 |
| 2 | End Connection : Screwed Ends to BSP/BSPT/NPT (F) Victrolick end |
| 3 | Inspection And Testing Std : BS 6755 (Part-I) |
| TEST PRESSURE (PSIG / Kg / Cm2) | |||
| TESTING | TEST liPeeNSU RE | SEAT | |
| HYDRAULIC | 425 PSIG | 300 PSIG | |
| All DimEntions arE in M.M. | ||||||
| SCR. ENDS | S.W. ENDS | |||||
| 0D | F(Min.) | |||||
| SIZE | L | 0C 1 E | ||||
| Max. | Min. | |||||
| 15 | 60 | 1i2" | 13.56 | 22.22 | 21.72 | 9.65 |
| 20 | 70 | 3/4" | 13.87 | 27.56 | 27.05 | 12.7 |
| 25 | 80 | 1" | 17.35 | 34.29 | 33.78_ | 12.7 |
| 40 | 100 | 112" | 18.38 | 49.15 | 48.64 | 12.7 |
| 50 | 120 | 2" | 19.23 | 61.62 | 61.11 | 15.75 |
THE DESIGN AND TECHNICAL DATA FURNISHED HERE ARE SUBJECT TO CHANGE DUE TO CONTINUOUS PRODUCT DEVELOPMENT,
I-FLOW VALVES
